100L Chocolate Conche Refiner Machine 380V 5.5kW

Product Categories
Suzhou Harmo Food Machinery Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

100L Chocolate Conche Refiner Machine 380V 5.5kW

Place of Origin : Jiangsu, China

Certification : ISO CE

MOQ : 1

Price : $5,600

Voltage : 380V 50Hz 3Phase or Customized

Power : 5.5 kW

Dimension : 1200*1150*1050mm

Weight : 1050 KG

Capacity : 100L

Grinding fineness : 20~25micron

Grinding time : 8-10h

Main motor power : 5.5 kW

Electrical heating power : 2.5 kW

Main axle speed : 48 rpm

Material : Carbon Steel Or Stainless Steel

Blade material : Manganese steel

Batch capacity : 100kg/batch

Temperature control : Automatic

Lining bars : Manganese steel

Contact Now

Products Description
Application:
1.Our 100L chocolate conche refiner is proper production solution for chocolate shops and chocolate labs, because it’s with three
functions: raw materials mixing, chocolate mass grinding&refining, and conching.
2.It can be used to make chocolate mass and various filling which used on chocolate.
Technical parameters
Model/Project
20L
100L
500L
1000L
1500L
2000L
3000L
Maximum capicity(L)
20
100
500
1000
1500
2000
3000
Grinding Fineness(micron)
20-25
20-25
20-25
20-25
20-25
20-25
20-25
Main Axle Rotating Speed(rpm)
93
48
33
35
35
35
35
Grinding time(h)
8-10
12-16
16-22
16-22
16-22
16-22
16-22
Main moter power(kw)
1.5
5.5
15
22
30
37
45
Electrical heating power(kw)
0.6
2.5
5
2×2
6
3×2
12
Weight(kg)
295
1050
2572
3050
4850
5350
7500
Outside dimensions(mm)
920×600×1110
1200×1150×1050
2465×1146×1312
2627×1280×1520
2918×1650×1920
3040×1912×1920
3450×2016×2280

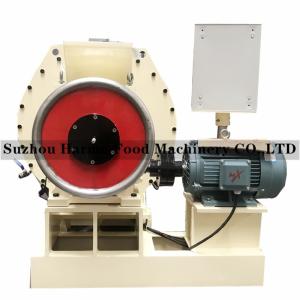

Product Picture
100L Chocolate Conche Refiner Machine 380V 5.5kW
Detail Picture
100L Chocolate Conche Refiner Machine 380V 5.5kW
Features:
1.Material of blades and lining bars are Manganese steel which with long living time. Moreover, every piece of lining bars will be processed and strengthened by our special heating system.
2.Our 100L chocolate conche refiner is flexible to operators, the reasons are:
1)100kg/batch which means load the raw materials is an easy job;
2)With solenoid valve and automatic temperature control system.
3.Limited space is suitable for our 20L conche refiner.
Processing Picture:
100L Chocolate Conche Refiner Machine 380V 5.5kW
Workshop
100L Chocolate Conche Refiner Machine 380V 5.5kW
1.Since our 100L chocolate conche refiner is very convenient for chocolate shops and chocolate labs, it’s one of our hot sale products always. 2. We can make 50 sets of 100L chocolate conche refiner/month. Moreover, except motor and electrical components, almost all parts are made by ourselves. So we can control our quality very well.
Company Profile
100L Chocolate Conche Refiner Machine 380V 5.5kW
Suzhou Harmo Food Machinery is founded in Suzhou, China. We are professional chocolate machine supplier with full set of chocolate machine manufacturing facility. Except motors and electrical components, almost all parts are made by ourselves, so we can control quality from raw materials to finished products.
We export our chocolate machines to USA, Canada, South America, Middle East, North Africa, Eastern Europe and Asia. What made our company so special is our manufacturing experience which supply the best use of chocolate equipment and production processes for our customers around the world.
Quality is our culture, and service is our principle. This is why quality takes precedence over the price always. We know that you value service and we can prove it for you. So when we receive your questions,we strive to answer as promptly as possible.
It’s our purpose that learn from customers, work with customers and provide reliable chocolate equipment and proper production solutions for customers.
Certifications
100L Chocolate Conche Refiner Machine 380V 5.5kW
Product packaging
100L Chocolate Conche Refiner Machine 380V 5.5kW
FAQ

Q1: Can you provide invitation letter for customers and arrange pick-up at the airport, if
they want to visit your factory?
A1: Yes. We can provide invitation letter and arrange our driver or sales to pick up customers at Shanghai airport or train
station.
Q2: What is your warranty period?
A2: Our warranty is 12 months or 14 months after shipment.
Q3: Will you test the machine after manufacturing?
A3: Yes. All our machines will be tested with oil or raw materials before shipping by our technician.
Q4: Can you supply machines which conform to European Standard or American standard?
A4: Yes. We exported our machines to USA, Canada, Hungary and Belgium, etc.


Q5: What can we do if goods were damaged during shipping?
A5: Firstly, We will pack goods and fix them well in our factory;
Secondly, If goods were damaged during sea shipping, we will deliver parts to you try our best. So you can replace damaged parts
and run machines ASAP;

Q6: Can you arrange loading in your factory if customer bought products from different suppliers?
A6: Yes,we can load all products in our factory and ship all goods by one or two containers.
Q7: Do you provide installation and commissioning service?
A7: Yes, we can deliver our technician to do installation and commissioning in customers’ factory.
After installation, our technician will provide training for stuff in the factory.
Q8: Do you provide recipe if customer buys whole production line?
A8: Yes, we can provide a basic recipe, then customer can adjust the recipe according to customer's local market demand.
Q9: Do you provide instruction manual and maintenance schedule?
A9: Yes. We will provide detailed instruction manual and maintenance schedule before shipping.
Q10: Can you make customized machine?
A10: Yes, we can customize the machine according to the final product. Also we can provide turnkey project for our customers.
